Item No :
JNS20K-A-V1;JNS30K-A-V1;JNS60K-A-V1;JNS120K-A-V1Order(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
WhiteShipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，GuangzhouLead Time :
7 daysWeight :

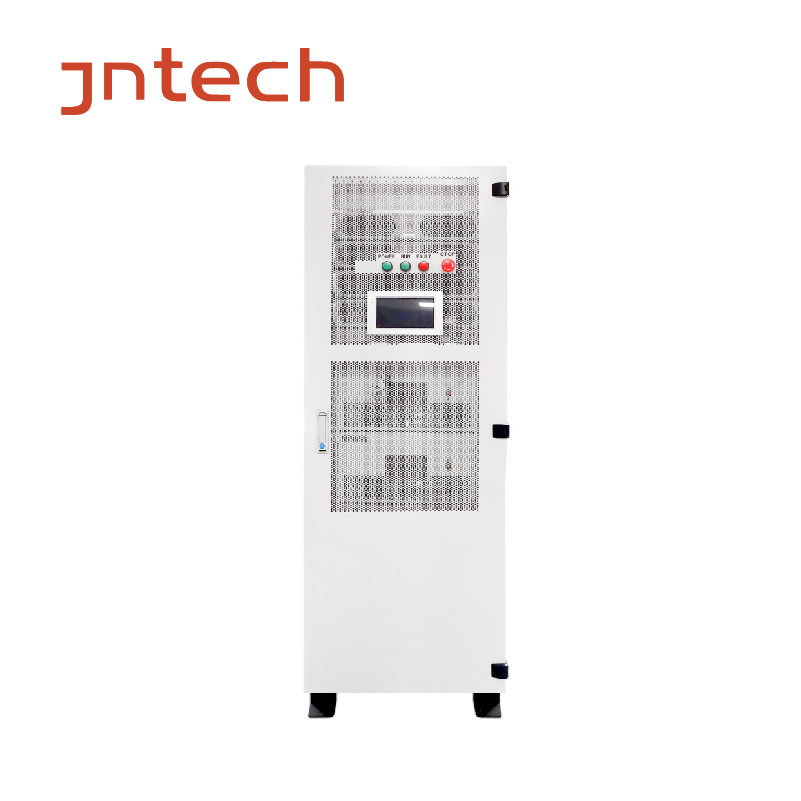

240-360KgSolar Energy System On Off Grid With Batteries For Commercial

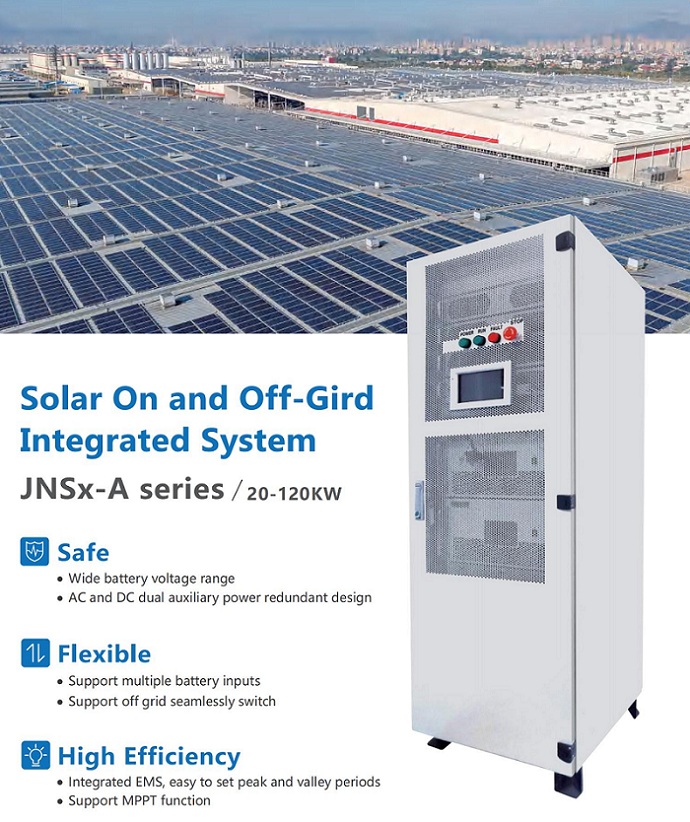

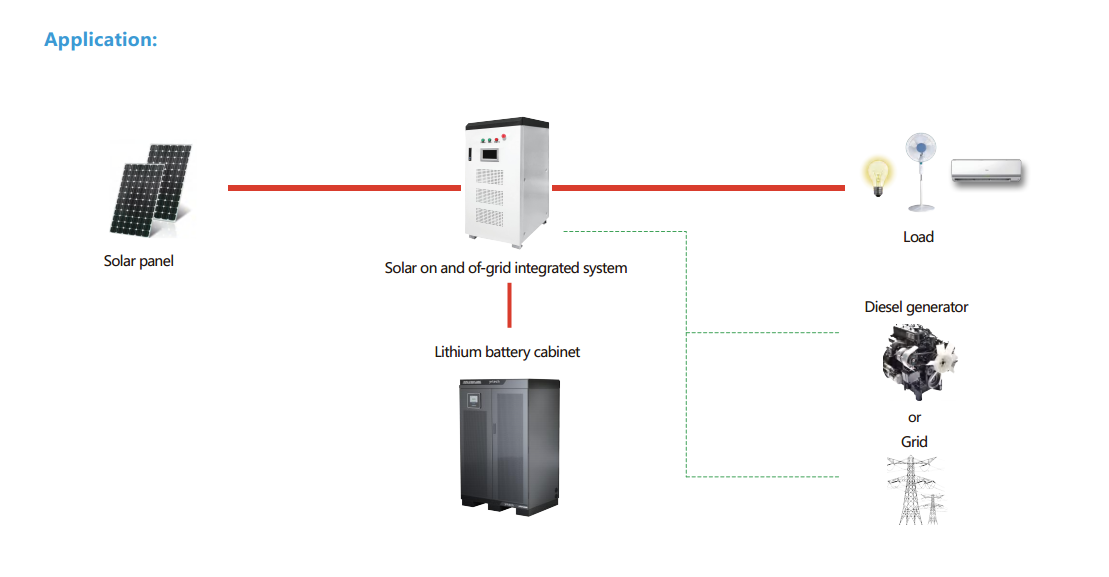

The on off grid solar system can achieve energy optimization control, and realize functions such as peak load shifting, regulation and conservation, and backup power supply through intelligent management and control system. The energy storage system has the advantages of high efficiency, environmental protection and safety, and can improve the quality of electric energy and power reliability.
Feature:
1.Wide battery voltage range
3.Support MPPT function
| Model | JNS20K-A-V1 | JNS30K-A-V1 | JNS60K-A-V1 | JNS120K-A-V1 |
| PV Input | ||||
| Max. PV array input voltage | 800Vdc | 800Vdc | 800Vdc | 800Vdc |
| Recommended PV Module Configuration | 2 channels, each channel 4 in parallel and 13 in series 330Wp, total 34320W | 2 channels, each channel 4 in parallel and 13 in series 330Wp, total 34320W |
and 13 in series 330Wp, total 34320W 2channels，each channel 8 in parallel
and 13 in series 330Wp,total 68640W
|
4channels，each channel 8 in parallel and 13 in series 330Wp,total 137280W |
| MPPT voltage range | 250~750Vdc | 250~750Vdc | 404~750Vdc | 404~750Vdc |
| Battery | ||||
| Rated voltage | 230Vdc | 230Vdc | 384Vdc | 384Vdc |
| Type | Gel/lithium | Gel/lithium | Gel/lithium | Gel/lithium |
| Max. charge current | 150A | 150A | 150A | 300A |
| AC output parameters (on grid) | ||||
| Grid voltage range | 304Vac~485Vac | 304Vac~485Vac | 304Vac~485Vac | 304Vac~485Vac |
| Grid voltage frequency | 50/60Hz (±5%) | 50/60Hz (±5%) | 50/60Hz (±5%) | 50/60Hz (±5%) |
| Voltage standard | 3-phase 4-wire，3W+1PE | 3-phase 4-wire，3W+1PE | 3-phase 4-wire，3W+1PE | 3-phase 4-wire，3W+1PE |
| Rated voltage | 400Vac(380/400/415Vaccan be set) | 400Vac(380/400/415Vaccan be set) | 400Vac(380/400/415Vaccan be set) | 400Vac(380/400/415Vaccan be set) |
| Rated power | 20kW | 30kW | 60kW | 120kW |
| Total harmonic distortion（Ithd） | ＜3% | ＜3% | ＜3% | ＜3% |
| Power factor | >0.99 | >0.99 | >0.99 | >0.99 |
| DC output parameters (off grid) | ||||
| Rated output capacitor | 20000VA | 30000VA | 60000VA | 120000VA |
| Rated output power（linear load） | 20000W | 30000W | 60000W | 120000W |
| Rated voltage | 400Vac(380/400/415Vac can be set) | 400Vac(380/400/415Vac can be set) | 400Vac(380/400/415Vac can be set) | 400Vac(380/400/415Vac can be set) |
| Grid voltage frequency | 50/60Hz (±5%) | 50/60Hz (±5%) | 50/60Hz (±5%) | 50/60Hz (±5%) |
| Voltage standard | Three-phase five-wire, 3W+1N+1PE, single-phase output capacity :30% rated power | Three-phase five-wire, 3W+1N+1PE, single-phase output capacity :30% rated power | Three-phase five-wire, 3W+1N+1PE, single-phase output capacity :30% rated power | Three-phase five-wire, 3W+1N+1PE, single-phase output capacity :30% rated power |
| Total Harmonic Distortion（Vthd） | <3% | <3% | <3% | <3% |
| Overload | 1min@≥120% load;10min@ 110%load | 1min@≥120% load;10min@ 110%load | 1min@≥120% load;10min@ 110%load | 1min@≥120% load;10min@ 110%load |
| Other | ||||
| Autible noice | <62dB | <62dB | <62dB | <62dB |
| Protecition level | IP21 | IP21 | IP21 | IP21 |
| Cooling method | Forced cooling | Forced cooling | Forced cooling | Forced cooling |
| Operate temp. | -20～+55℃ | -20～+55℃ | -20～+55℃ | -20～+55℃ |
| Storage temp. | -25～+70℃ | -25～+70℃ | -25～+70℃ | -25～+70℃ |
| Status indicator | LCD+LED | LCD+LED | LCD+LED | LCD+LED |
| Interface | RS485 | RS485 | RS485 | RS485 |
| Elevation | 2000m(>2000m derating operate) | 2000m(>2000m derating operate) | 2000m(>2000m derating operate) | 2000m(>2000m derating operate) |
| Dimension(W*D*H)(mm) | 600*781*1300 | 600*781*1300 | 600*781*1600 | 600*781*2000 |
| Weight (kg) | 240Kg | 240Kg | 290Kg | 360Kg |
The 12-20kW Solar Storage Integrated Machine is for industry and commerce.that combines solar power generation and energy storage systems. It integrates the functions of solar power generation, energy storage, output regulation, and power dispatch, to provide a comprehensive and efficient solution for clean energy.
The Solar On-Grid And Off-Grid Integrated System supports seamless switching between on-grid and off-grid Integrated EMS, easy to set peak and valley time.Redundant Design of AC and DC Dual Auxiliary Power Supply.
The Solar Energy System On Off Grid For Commercial refers to the storage of electrical energy in batteries or supercapacitors to provide power stability and energy storage services, which are widely used in the industrial, commercial and public sectors.
The industrial and commercial energy storage system refers to the storage of electrical energy in batteries or supercapacitors to provide power stability and energy storage services, which are widely used in the industrial, commercial and public sectors.
Container Energy Storage System (CESS) is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
The energy storage system container consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The solar energy storage battery cabinets consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The High Voltage Solar Charger is designed for large-scale solar energy storage systems and direct-drive solar power supply systems. Featuring advanced MPPT algorithms and high-speed processors, it offers reliable and stable charging and output, quick response times, and high dependability.
