Item No :
JNC43KH-V1Order(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
WhiteShipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，GuangzhouLead Time :
7 daysWeight :
28kg

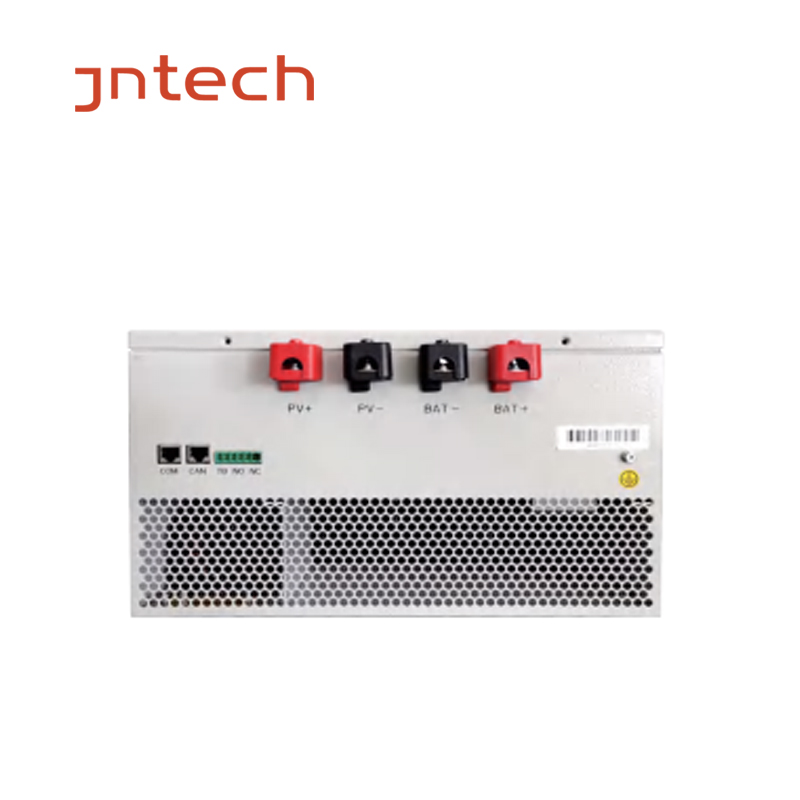

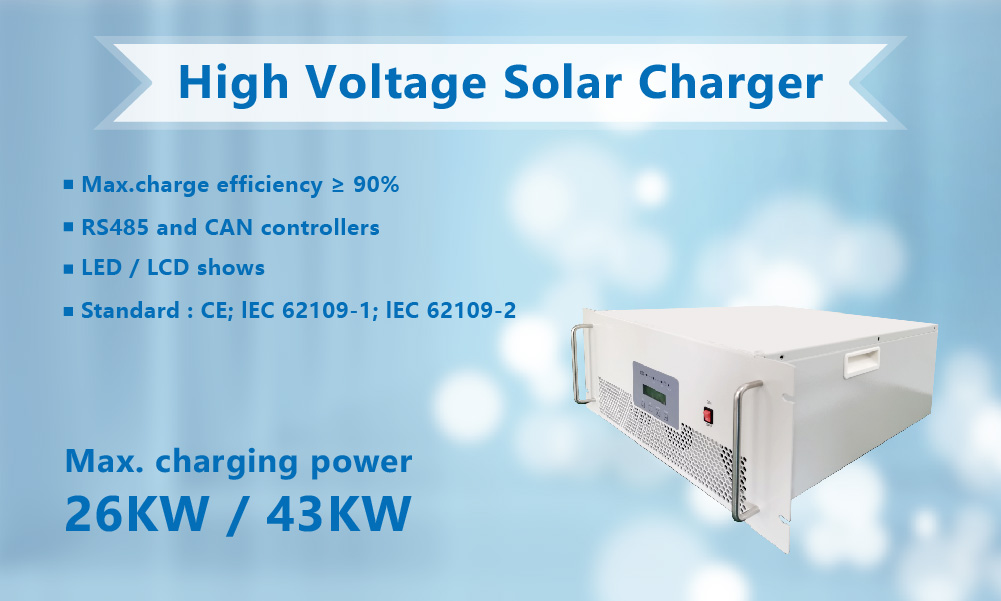

High Voltage Solar Charger With Mppt Control

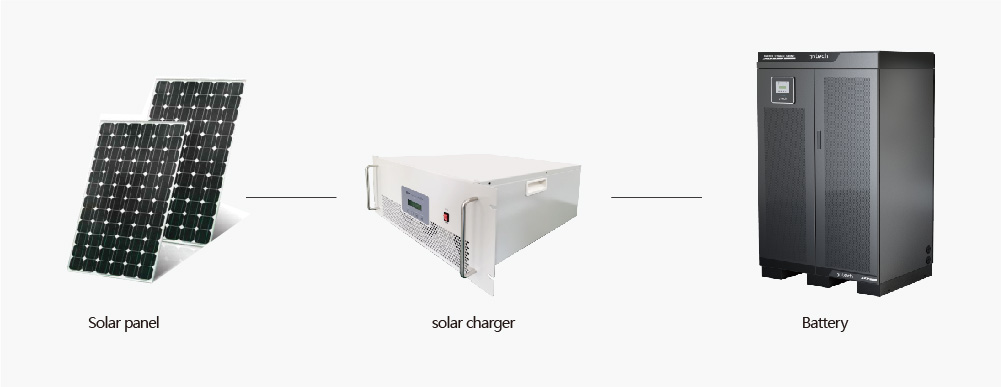

The mppt solar charger control algorithm utilized in the solar charger optimizes real-time solar panel energy output and allows for customizable battery parameters. The controller can charge the battery independently and can also be integrated with an energy storage system. Additionally, it offers remote control and parallel operation via external communication.
Features:
| Model | JNC26KH-V1 | JNC43KH-V1 |
| PV Input | ||
| Max. input voltage | 1000Vdc | |
| Max. charging power | 26KW | 43KW |
| MPPT voltage range | 350VDC~950VDC | 550VDC~950VDC |
| Battery | ||
| Rated voltage | 230DC | 384DC |
| Max.charge current | 100A | |
| Max.charge efficiency | ≥90% | |
| Mechanical data | ||
| Dimension(W/H/D)(mm) | 482*222*491mm | |
| Weight | 28Kg | |
| Other | ||
| Protecition level | IP21 | |
| Audible Noise | <60dB | |
| Cooling method | Forced cooling | |
| Operating temp. | -20~+55℃ | |
| Storage temp. | -25~+70℃ | |
| Status indicator | LCD/LED | |
| Elevation | 2000m(>2000m derates operation) | |
| Standard | CE; lEC 62109-1; lEC 62109-2 | |
The 12-20kW Solar Storage Integrated Machine is for industry and commerce.that combines solar power generation and energy storage systems. It integrates the functions of solar power generation, energy storage, output regulation, and power dispatch, to provide a comprehensive and efficient solution for clean energy.
The Solar On-Grid And Off-Grid Integrated System supports seamless switching between on-grid and off-grid Integrated EMS, easy to set peak and valley time.Redundant Design of AC and DC Dual Auxiliary Power Supply.
The Solar Energy System On Off Grid For Commercial refers to the storage of electrical energy in batteries or supercapacitors to provide power stability and energy storage services, which are widely used in the industrial, commercial and public sectors.
The industrial and commercial energy storage system refers to the storage of electrical energy in batteries or supercapacitors to provide power stability and energy storage services, which are widely used in the industrial, commercial and public sectors.
Container Energy Storage System (CESS) is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
The energy storage system container consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The solar energy storage battery cabinets consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The High Voltage Solar Charger is designed for large-scale solar energy storage systems and direct-drive solar power supply systems. Featuring advanced MPPT algorithms and high-speed processors, it offers reliable and stable charging and output, quick response times, and high dependability.
