Item No :
JNB048100-H-V2/JNB048100-H-V3/JNB048100-H-V4Order(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
black 、WhiteShipping Port :
Nanjing, Ningbo, Shanghai,Shenzhen,GuangzhouLead Time :
7 DAYSWeight :
50KGSolar Energy Storage Battery Lithium Iron Phosphates Cells

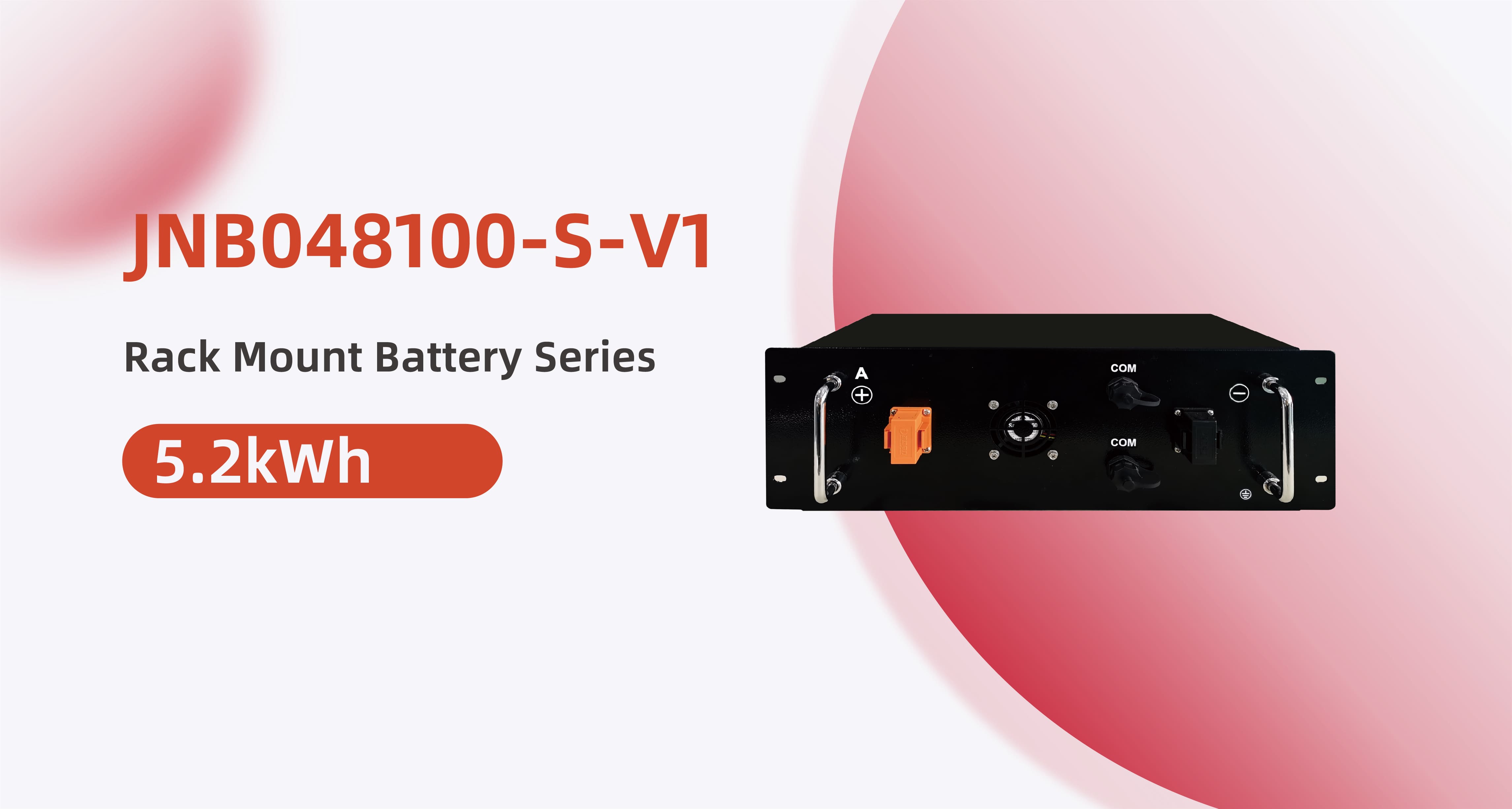

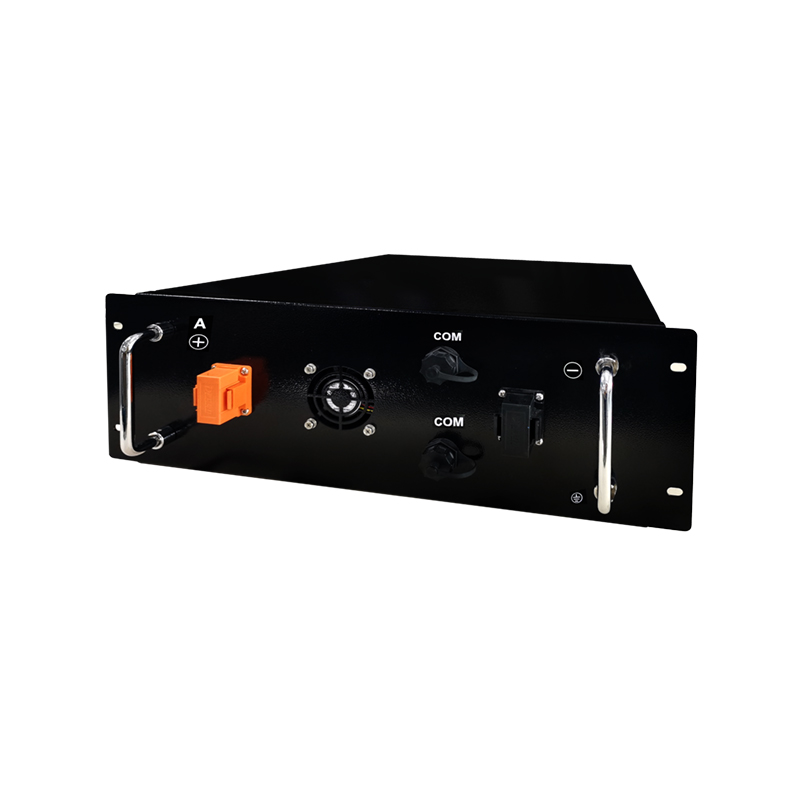

The 5.2kWh Rack Insert Battery features high-performance LiFePO4 technology, designed for seamless integration into rack-mounted systems. With its compact design, it offers reliable energy storage for off-grid and backup power applications. The battery boasts a nominal voltage of 51.2V and a robust build quality, ensuring long-lasting performance and safety. Suitable for both residential and commercial use, it's a reliable choice for energy storage needs.
Product Advantages
Application Scenario

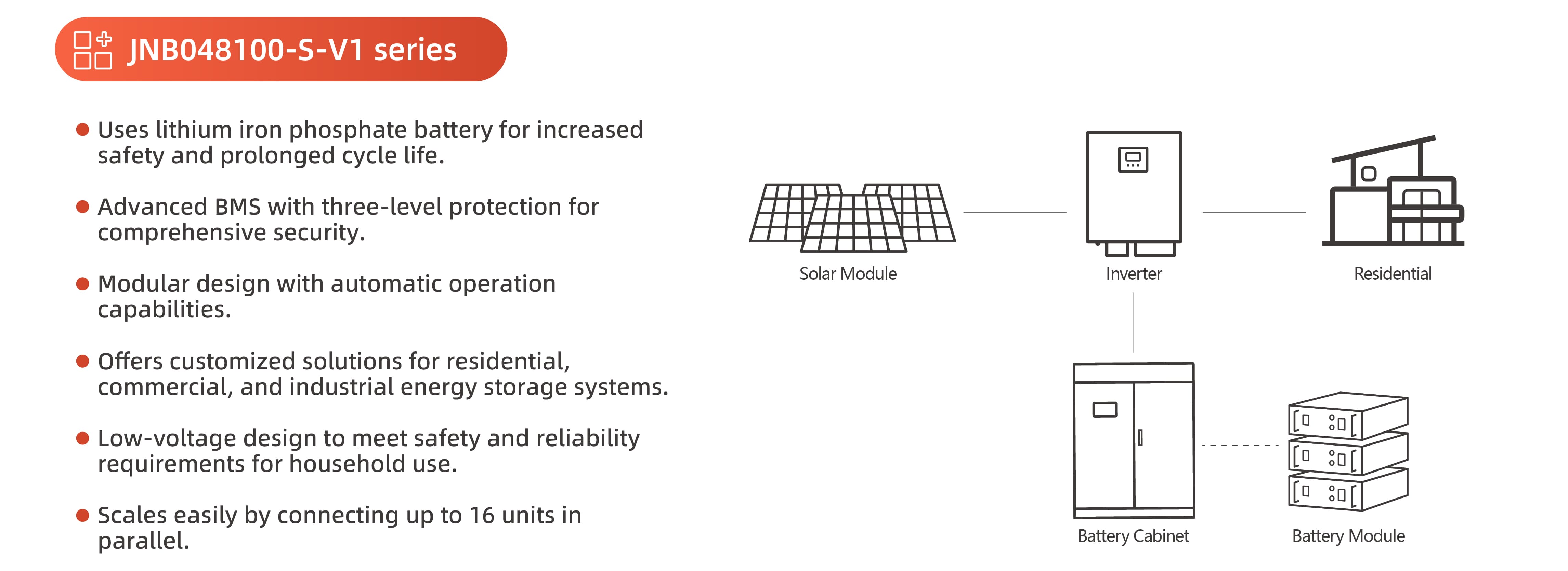

off-grid and grid-connected photovoltaic energy storage systems for residential, commercial and industrial energy storage applications.
Product Parameters
Model | JNB048100-H-V2 | JNB048100-H-V3 | JNB048100-H-V4 | ||
Rated capacity | 100Ah | ||||
Rated voltage | 51.2V | ||||
Rated energy | 5.2kWh | ||||
Battery type | LiFePO4 | ||||
Max. continuous charge current | 100A (1C) | ||||
Max. continuous discharge current | 100A (1C) | ||||
Voltage range | 40~60VDC | ||||
Operating temperature | Charge 0~45℃,discharge -25~55℃ | ||||
Storage temperature | -20~60℃ | ||||
Box size | 610*454*157mm | 580*490*162mm | 596*532*195mm | ||
Weight | 50kg | 50kg | 55kg | ||
Cooling method | Natural air cooling | ||||
Protecition level | IP30 | ||||
Functional protection | Undervoltage, overvoltage, overcurrent, temperature, short circuit | ||||
Installation method | Wall mounted | Rack insert | stacked | ||
Cycle life | >4000 times(80%DOD), >7000 times(70%DOD) | ||||
Interface | RS485/CAN | ||||
Elevation | ≤3000m |
