Item No :
JNB048100-H-V2/JNB048100-H-V3/JNB048100-H-V4Order(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
black 、WhiteShipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，GuangzhouLead Time :
7 DAYSWeight :
50KG

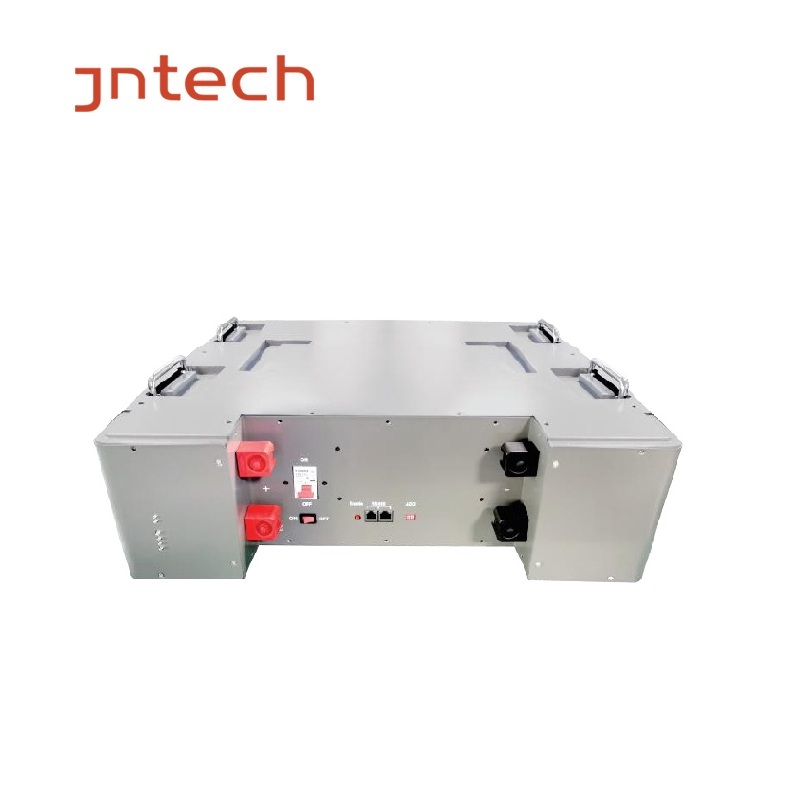

100Ah Lifepo4 Battery Pack For Solar System
Product Introduction：
This energy storage battery widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential, commercial, and industrial energy storage applications.
Features:
●Uses lithium iron phosphate battery for increased
safety and prolonged cycle life.
●Advanced BMS with three-level protection for
comprehensive security.
●Modular design with automatic operation capabilities.
●Offers customized solutions for residential,
commercial, and industrial energy storage systems.
●Low-voltage design to meet safety and reliability
requirements for household use
●Scales easily by connecting up to 16 units in parallel.
| Battery Module Parameters | |||||
| Model | JNB048100-H-V2 | JNB048100-H-V3 | JNB048100-H-V4 | ||
| Rated capacity | 100Ah | ||||
| Rated voltage | 51.2V | ||||
| Rated energy | 5.2kWh | ||||
| Battery type | LiFePO4 | ||||
| Max. continuous charge current | 100A (1C) | ||||
| Max. continuous discharge current | 100A (1C) | ||||
| Voltage range | 40~60VDC | ||||
| Operating temperature | Charge 0~45℃，discharge -25~55℃ | ||||
| Storage temperature | -20~60℃ | ||||
| Box size | 610*454*157mm | 580*490*162mm | 596*532*195mm | ||
| Weight | 50kg | 50kg | 55kg | ||
| Cooling method | Natural air cooling | ||||
| Protecition level | IP30 | ||||
| Functional protection | Undervoltage, overvoltage, overcurrent, temperature, short circuit | ||||

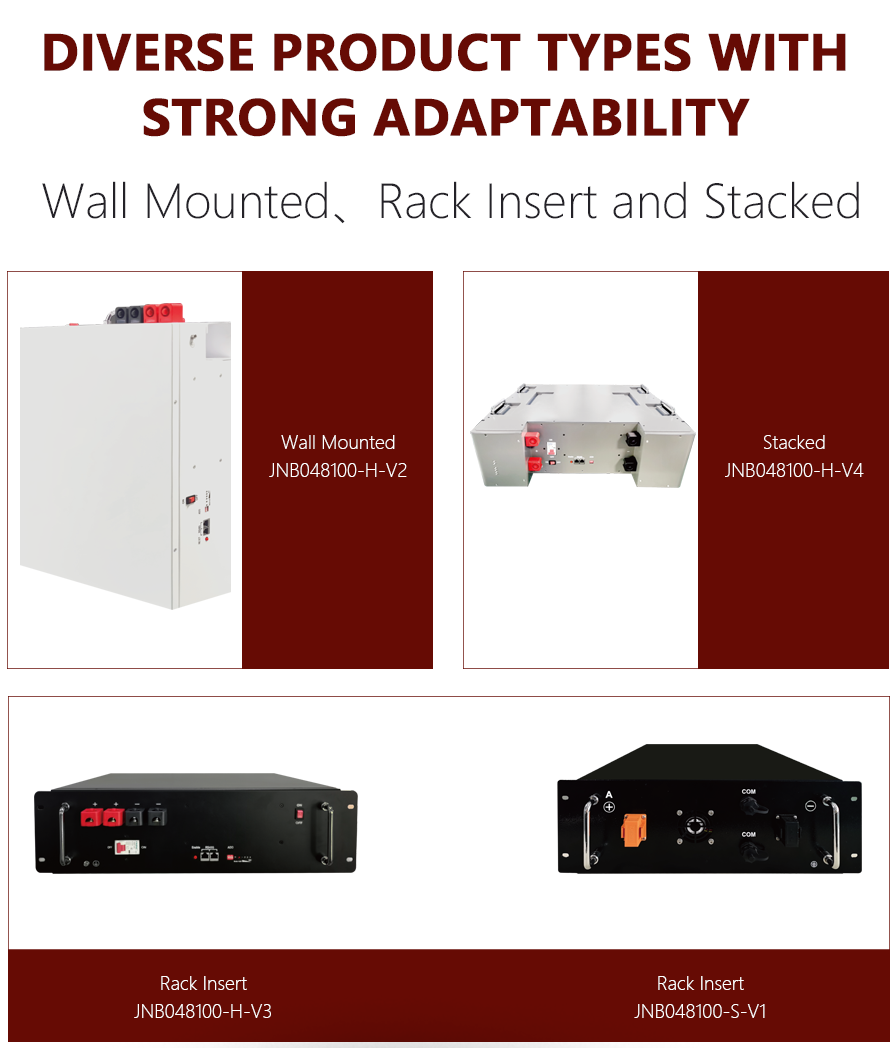

| Installation method | Wall mounted | Rack insert | stacked | ||
| Cycle life | >4000 times(80%DOD), >7000 times(70%DOD) | ||||
| Interface | RS485/CAN | ||||
| Elevation | ≤3000m | ||||
Solar Battery Storage System Container is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium-ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
Container Energy Storage System (CESS) is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
The energy storage system container consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The solar energy storage battery cabinets consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The lithium iron phosphate battery combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.
The battery pack for solar system combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.

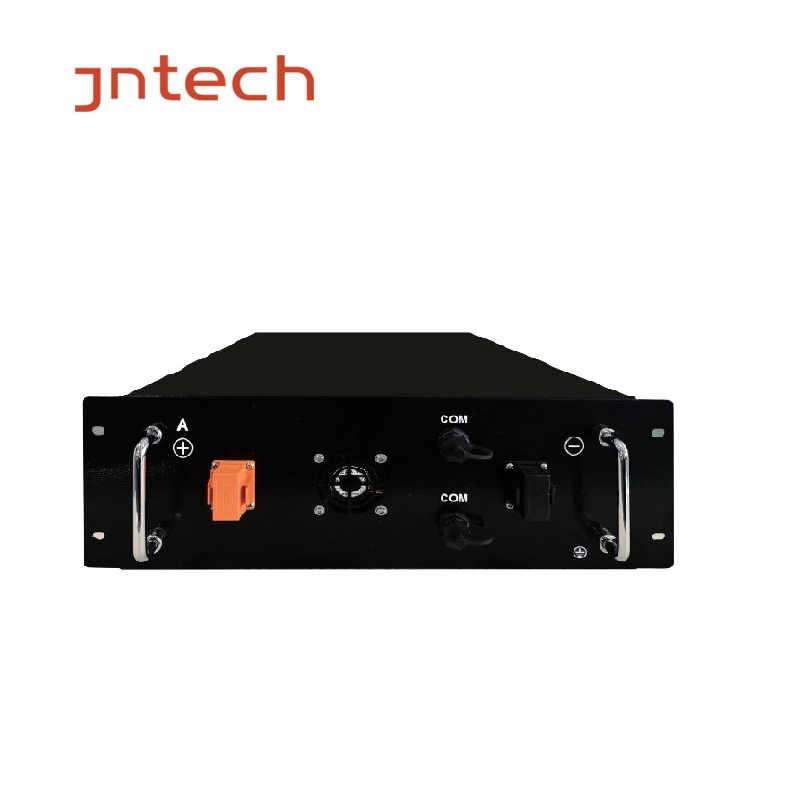

JNTECH Rack Insert Battery combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.
This solar storage battery module combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS. It is widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential,commercial, and industrial energy storage applications.
