Item No :
JNSG15KHF4815-V1 series;JNSG15KHF4820-V1 seriesOrder(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
GreyShipping Port :
Nanjing, Ningbo, Shanghai,Shenzhen,GuangzhouLead Time :
7daysWeight :
100-300kg15kW Off Grid Solar Energy Storage System For Residential

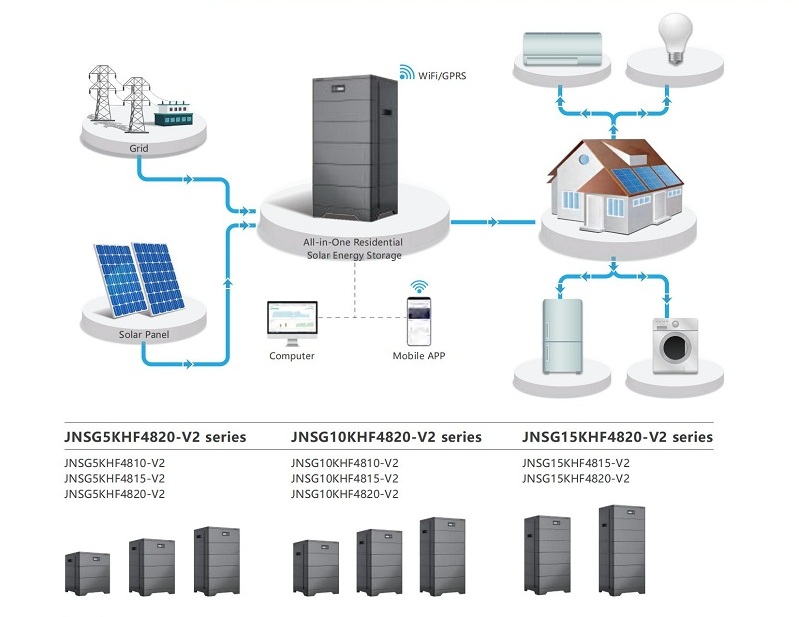

This home solar energy storage system consists of a solar panel array, a battery bank, and an inverter. The solar panels capture the energy from the sun and convert it into electricity, which is stored in the battery bank. The inverter then converts the DC power into AC power that can be used to power household appliances and electronics.
Smart control by mobile APP/Web
2. The battery and the inverter use BMS communication to monitor the battery SOC at all times to ensure that the SOC is within a reasonable range. When the SOC of each battery group is found to be unbalanced, changing the inverter parameters can automatically balance the battery power
Model
|
JNSG5KHF4810-V1
|
JNSG5KHF4815-V1
|
JNSG5KHF4820-V1
|
PV Input
|
|||
Max.PV input voltage
|
450Vdc
|
450Vdc
|
450Vdc
|
Recommended input power
|
7000W
|
7000W
|
7000W
|
MPPT voltage range
|
120~430Vdc
|
120~430Vdc
|
120~430Vdc
|
Battery
|
|||
Rated voltage
|
48Vdc
|
48Vdc
|
48Vdc
|
Max.charge current
|
80A
|
80A
|
80A
|
Efficiency
|
≥97%
|
≥97%
|
≥97%
|
Type & Rated capacity
|
Gel/lithium & 10kWh
|
Gel/lithium & 15kWh
|
Gel/lithium & 20kWh
|
AC Input、Bypass output
|
|||
Voltage and frequency
|
230Vac±20%,50/60Hz (±3%)
|
230Vac±20%,50/60Hz (±3%)
|
230Vac±20%,50/60Hz (±3%)
|
Max. charge current
|
60A
|
60A
|
60A
|
Switching time
|
≤10ms
|
≤10ms
|
≤10ms
|
Inverter Output
|
|||
Rated output capacitor
|
5000VA
|
5000VA
|
5000VA
|
Rated output power
|
5000W
|
5000W
|
5000W
|
Output voltage
|
220Vac/230Vac
|
220Vac/230Vac
|
220Vac/230Vac
|
Rated frequency
|
50/60Hz (±3%)
|
50/60Hz (±3%)
|
50/60Hz (±3%)
|
Standby loss
|
≤10W
|
≤10W
|
≤10W
|
Max. efficiency
|
93%
|
93%
|
93%
|
Waveform
|
Sine wave
|
Sine wave
|
Sine wave
|
Total harmonic distortion (THD)
|
<3%
|
<3%
|
<3%
|
Overload
|
5s@≥150% load;10s@ 110%~150% load
|
5s@≥150% load;10s@ 110%~150% load
|
5s@≥150% load;10s@ 110%~150% load
|
Others
|
|||
Protecition level
|
IP21
|
IP21
|
IP21
|
Autible noice
|
<60dB
|
<60dB
|
<60dB
|
Cooling method
|
Forced cooling
|
Forced cooling
|
Forced cooling
|
Operate temp.
|
-20~+50℃
|
-20~+50℃
|
-20~+50℃
|
Storage temp.
|
-25~+70℃
|
-25~+70℃
|
-25~+70℃
|
Status indicator
|
LCD+LED
|
LCD+LED
|
LCD+LED
|
Interface
|
RS485/CAN
|
RS485/CAN
|
RS485/CAN
|
Altitude
|
2000m( >2000m derating operate)
|
2000m( >2000m derating operate)
|
2000m( >2000m derating operate)
|
Dimension(W*D*H)
|
674*698*480mm
|
674*895*480mm
|
674*1093*480mm
|
Weight
|
143kg
|
202kg
|
260kg
|
Model |
JNSG10KHF4810-V1
|
JNSG10KHF4815-V1
|
JNSG10KHF4820-V1
|
PV Input | |||
Max.PV input voltage | 450Vdc | 450Vdc | 450Vdc |
Recommended input power | 14000W | 14000W | 14000W |
MPPT voltage range | 120~430Vdc | 120~430Vdc | 120~430Vdc |
Battery | |||
Rated voltage | 48Vdc | 48Vdc | 48Vdc |
Max.charge current | 160A | 16A | 160A |
Efficiency | ≥97% | ≥97% | ≥97% |
Type & Rated capacity | Gel/lithium & 10kWh | Gel/lithium & 15kWh | Gel/lithium & 20kWh |
AC Input、Bypass output | |||
Voltage and frequency | 230Vac±20%,50/60Hz (±3%) | 230Vac±20%,50/60Hz (±3%) | 230Vac±20%,50/60Hz (±3%) |
Max. charge current | 120A | 120A | 120A |
Switching time | ≤10ms | ≤10ms | ≤10ms |
Inverter Output | |||
Rated output capacitor | 10000VA | 10000VA | 10000VA |
Rated output power | 10000W | 10000W | 10000W |
Output voltage | 220Vac/230Vac | 220Vac/230Vac | 220Vac/230Vac |
Rated frequency | 50/60Hz (±3%) | 50/60Hz (±3%) | 50/60Hz (±3%) |
Standby loss | ≤20W | ≤20W | ≤20W |
Max. efficiency | 93% | 93% | 93% |
Waveform | Sine wave | Sine wave | Sine wave |
Total harmonic distortion (THD) | <3% | <3% | <3% |
Overload | 5s@≥150% load;10s@ 110%~150% load | 5s@≥150% load;10s@ 110%~150% load | 5s@≥150% load;10s@ 110%~150% load |
Others | |||
Protecition level | IP21 | IP21 | IP21 |
Autible noice | <60dB | <60dB | <60dB |
Cooling method | Forced cooling | Forced cooling | Forced cooling |
Operate temp. | -20~+50℃ | -20~+50℃ | -20~+50℃ |
Storage temp. | -25~+70℃ | -25~+70℃ | -25~+70℃ |
Status indicator | LCD+LED | LCD+LED | LCD+LED |
Interface | RS485/WIFI | RS485/WIFI | RS485/WIFI |
Altitude | 2000m( >2000m derating operate) | 2000m( >2000m derating operate) | 2000m( >2000m derating operate) |
