Item No :
JNSG15KHF4815-V1 series;JNSG15KHF4820-V1 seriesOrder(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
GreyShipping Port :
Nanjing, Ningbo, Shanghai,Shenzhen,GuangzhouLead Time :
7daysWeight :
100-300kg10-20kW Residential Battery Storage System

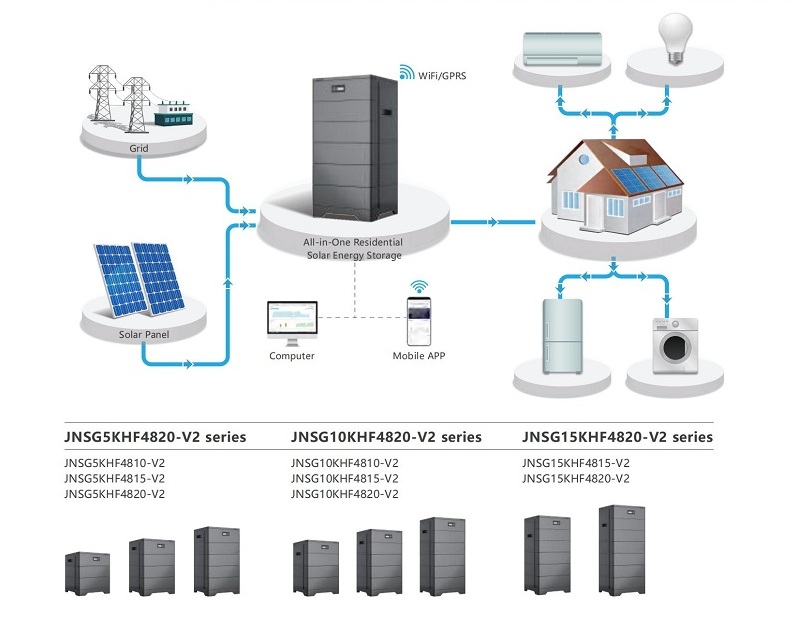

10-20kW residential battery storage system is reliable backup power: If you have solar panels and a storage system, you don't have to worry about a power outage, as you will always have access to electricity.
soalr energy storage system is environmentally sustainable: By using natural resources, such as solar power, you can reduce the use of mineral fuels and thereby, reduce the harm on the environment.
The home energy storage is easy installation and maintenance: The storage system is easy to install and needs very little maintenance. Compared to other energy systems, you can save a lot of time and money.
Smart control by mobile APP/Web
2. The battery and the inverter use BMS communication to monitor the battery SOC at all times to ensure that the SOC is within a reasonable range. When the SOC of each battery group is found to be unbalanced, changing the inverter parameters can automatically balance the battery power
Model
|
JNSG5KHF4810-V1
|
JNSG5KHF4815-V1
|
JNSG5KHF4820-V1
|
PV Input
|
|||
Max.PV input voltage
|
450Vdc
|
450Vdc
|
450Vdc
|
Recommended input power
|
7000W
|
7000W
|
7000W
|
MPPT voltage range
|
120~430Vdc
|
120~430Vdc
|
120~430Vdc
|
Battery
|
|||
Rated voltage
|
48Vdc
|
48Vdc
|
48Vdc
|
Max.charge current
|
80A
|
80A
|
80A
|
Efficiency
|
≥97%
|
≥97%
|
≥97%
|
Type & Rated capacity
|
Gel/lithium & 10kWh
|
Gel/lithium & 15kWh
|
Gel/lithium & 20kWh
|
AC Input、Bypass output
|
|||
Voltage and frequency
|
230Vac±20%,50/60Hz (±3%)
|
230Vac±20%,50/60Hz (±3%)
|
230Vac±20%,50/60Hz (±3%)
|
Max. charge current
|
60A
|
60A
|
60A
|
Switching time
|
≤10ms
|
≤10ms
|
≤10ms
|
Inverter Output
|
|||
Rated output capacitor
|
5000VA
|
5000VA
|
5000VA
|
Rated output power
|
5000W
|
5000W
|
5000W
|
Output voltage
|
220Vac/230Vac
|
220Vac/230Vac
|
220Vac/230Vac
|
Rated frequency
|
50/60Hz (±3%)
|
50/60Hz (±3%)
|
50/60Hz (±3%)
|
Standby loss
|
≤10W
|
≤10W
|
≤10W
|
Max. efficiency
|
93%
|
93%
|
93%
|
Waveform
|
Sine wave
|
Sine wave
|
Sine wave
|
Total harmonic distortion (THD)
|
<3%
|
<3%
|
<3%
|
Overload
|
5s@≥150% load;10s@ 110%~150% load
|
5s@≥150% load;10s@ 110%~150% load
|
5s@≥150% load;10s@ 110%~150% load
|
Others
|
|||
Protecition level
|
IP21
|
IP21
|
IP21
|
Autible noice
|
<60dB
|
<60dB
|
<60dB
|
Cooling method
|
Forced cooling
|
Forced cooling
|
Forced cooling
|
Operate temp.
|
-20~+50℃
|
-20~+50℃
|
-20~+50℃
|
Storage temp.
|
-25~+70℃
|
-25~+70℃
|
-25~+70℃
|
Status indicator
|
LCD+LED
|
LCD+LED
|
LCD+LED
|
Interface
|
RS485/CAN
|
RS485/CAN
|
RS485/CAN
|
Altitude
|
2000m( >2000m derating operate)
|
2000m( >2000m derating operate)
|
2000m( >2000m derating operate)
|
Dimension(W*D*H)
|
674*698*480mm
|
674*895*480mm
|
674*1093*480mm
|
Weight
|
143kg
|
202kg
|
260kg
|
Model |
JNSG10KHF4810-V1
|
JNSG10KHF4815-V1
|
JNSG10KHF4820-V1
|
PV Input | |||
Max.PV input voltage | 450Vdc | 450Vdc | 450Vdc |
Recommended input power | 14000W | 14000W | 14000W |
MPPT voltage range | 120~430Vdc | 120~430Vdc | 120~430Vdc |
Battery | |||
Rated voltage | 48Vdc | 48Vdc | 48Vdc |
Max.charge current | 160A | 16A | 160A |
Efficiency | ≥97% | ≥97% | ≥97% |
Type & Rated capacity | Gel/lithium & 10kWh | Gel/lithium & 15kWh | Gel/lithium & 20kWh |
AC Input、Bypass output | |||
Voltage and frequency | 230Vac±20%,50/60Hz (±3%) | 230Vac±20%,50/60Hz (±3%) | 230Vac±20%,50/60Hz (±3%) |
Max. charge current | 120A | 120A | 120A |
Switching time | ≤10ms | ≤10ms | ≤10ms |
Inverter Output | |||
Rated output capacitor | 10000VA | 10000VA | 10000VA |
Rated output power | 10000W | 10000W | 10000W |
Output voltage | 220Vac/230Vac | 220Vac/230Vac | 220Vac/230Vac |
Rated frequency | 50/60Hz (±3%) | 50/60Hz (±3%) | 50/60Hz (±3%) |
Standby loss | ≤20W | ≤20W | ≤20W |
Max. efficiency | 93% | 93% | 93% |
Waveform | Sine wave | Sine wave | Sine wave |
Total harmonic distortion (THD) | <3% | <3% | <3% |
Overload | 5s@≥150% load;10s@ 110%~150% load | 5s@≥150% load;10s@ 110%~150% load | 5s@≥150% load;10s@ 110%~150% load |
Others | |||
Protecition level | IP21 | IP21 | IP21 |
Autible noice | <60dB | <60dB | <60dB |
Cooling method | Forced cooling | Forced cooling | Forced cooling |
Operate temp. | -20~+50℃ | -20~+50℃ | -20~+50℃ |
Storage temp. | -25~+70℃ | -25~+70℃ | -25~+70℃ |
Status indicator | LCD+LED | LCD+LED | LCD+LED |
Interface | RS485/WIFI | RS485/WIFI | RS485/WIFI |
Altitude | 2000m( >2000m derating operate) | 2000m( >2000m derating operate) | 2000m( >2000m derating operate) |
